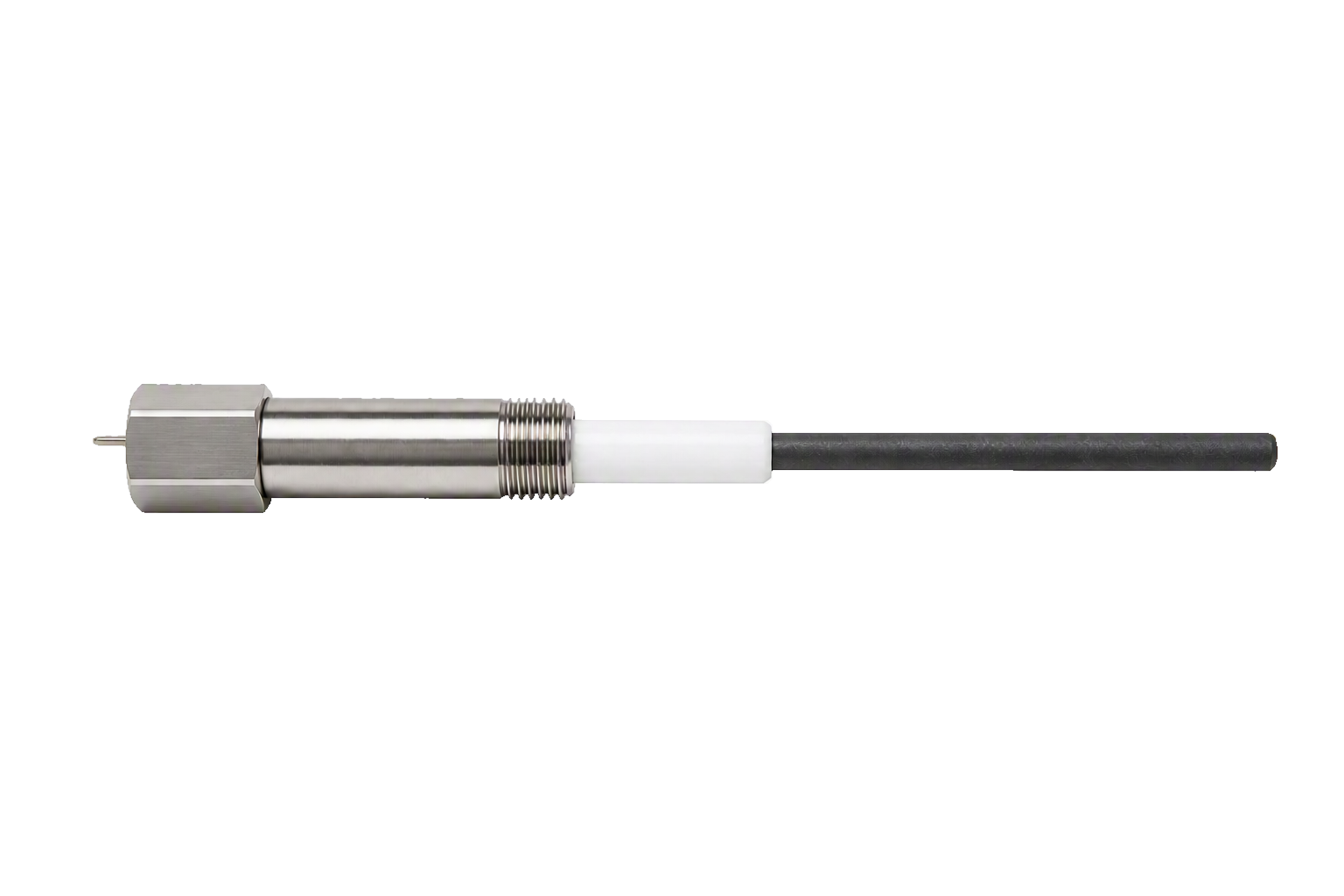

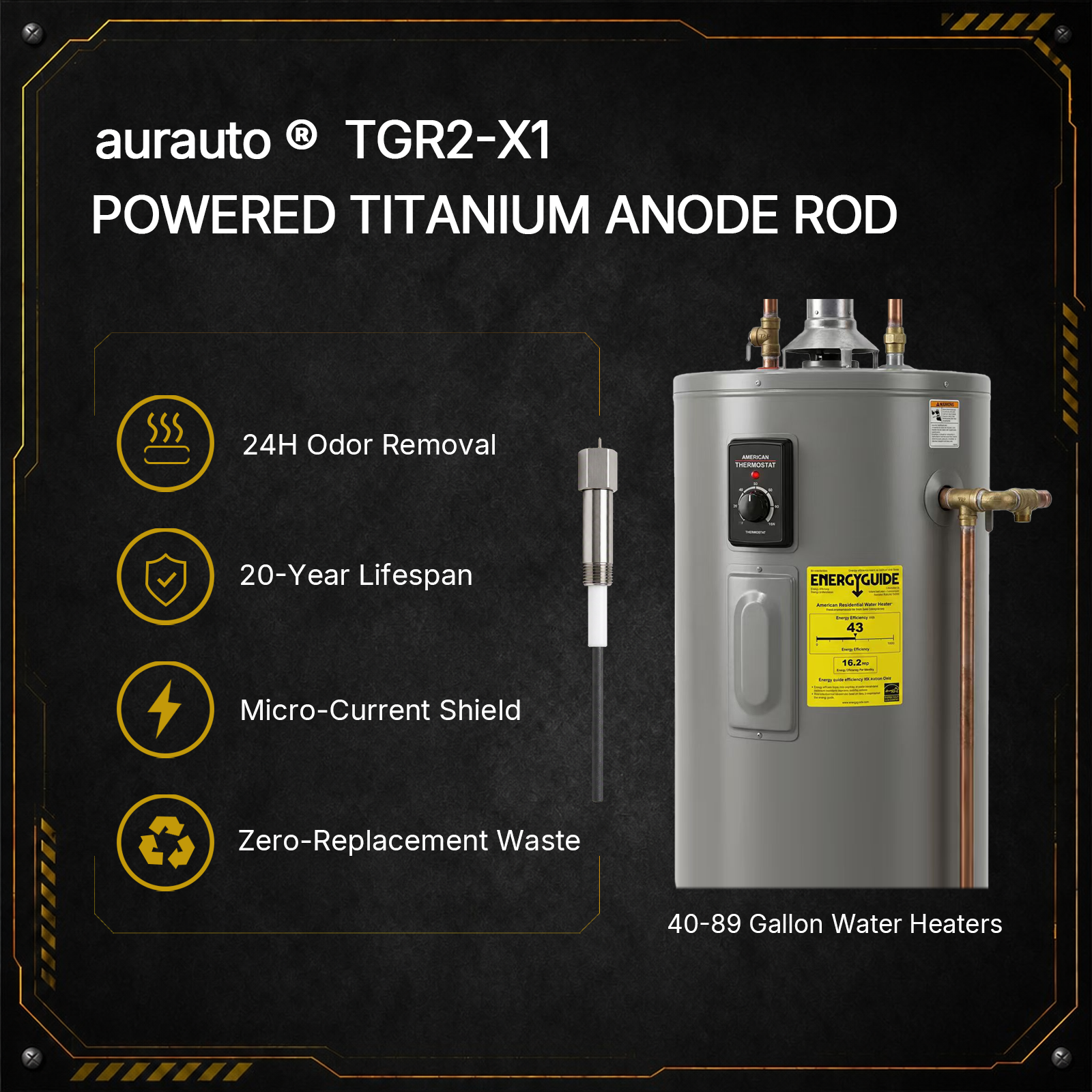

aurauto® TGR2-X1 Powered Titanium Anode Rod for Water Heater
The Last Anode Rod You Will Ever Need
Upgrade Ir-Ta MMO — published chemistry, not generic MMO or Ru-Ir*Comparable other brands, observed Q3 2026.
What's in the Box
Two installation kits share the same WQA-certified TGR2-X1 anode rod and power adapter. Pick the kit that matches your tank layout above.
Dedicated Anode Port
Hot Water Outlet
Why Choose aurauto® TGR2-X1
Three reasons aurauto beats the market — then the silent problems inside your tank we eliminate for good.
Why aurauto® wins
WQA Gold Seal Certified
Independently tested and certified lead-free by the Water Quality Association. Compliant with NSF/ANSI/CAN 372 for drinking-water contact.
Learn more →Ir-Ta MMO Titanium Anode
Generic “MMO” rods hide the coating chemistry. Wrong formulas — including Ru-Ir for seawater chlorine evolution — wear faster in freshwater tank service and let protection fade before the tank does.
Learn more →$99 & 5-Min DIY

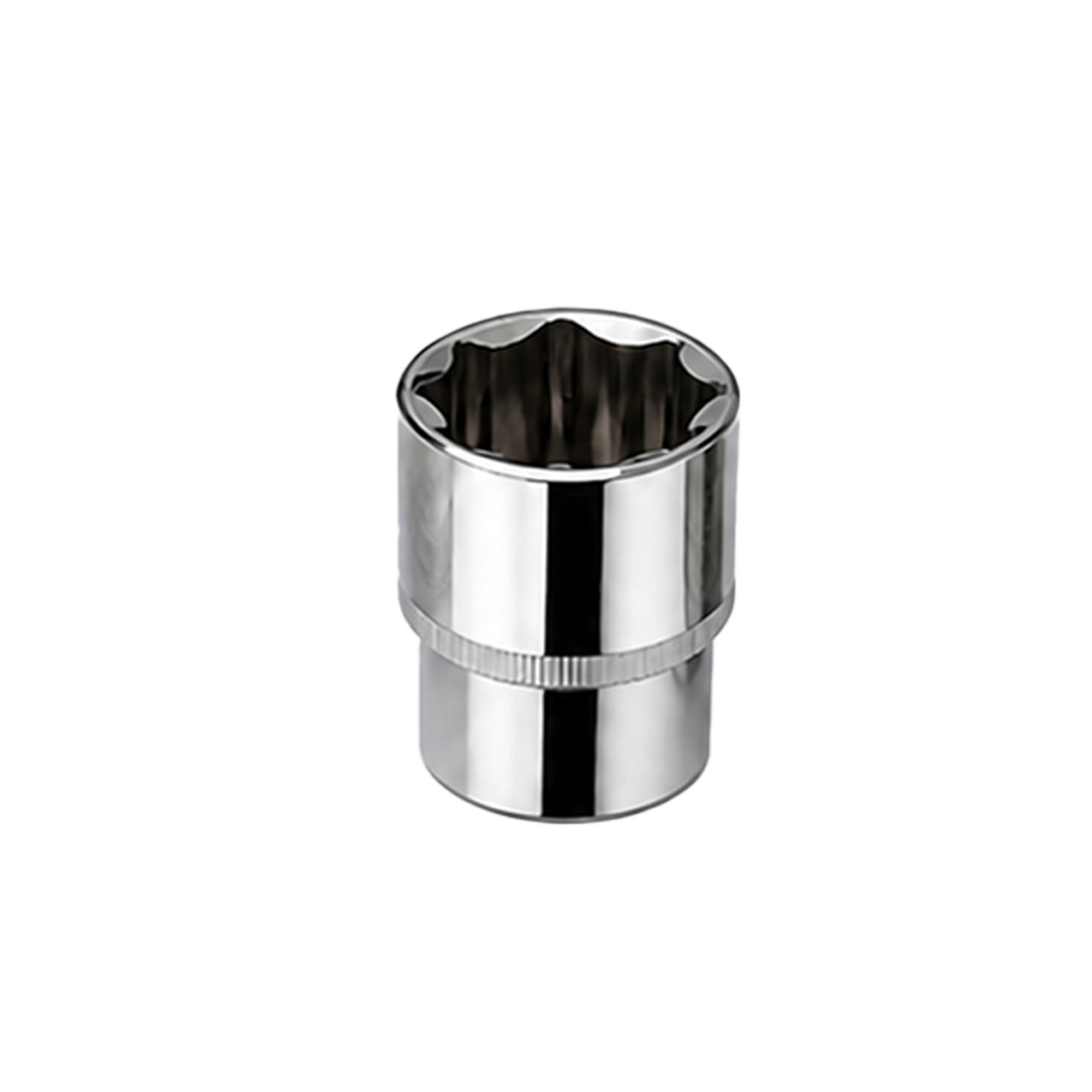

Less than branded magnesium rods at $150+. Two installation sockets included — 1-1/16" to remove the old rod, 1-3/16" to install. QR video walkthrough. No plumber.

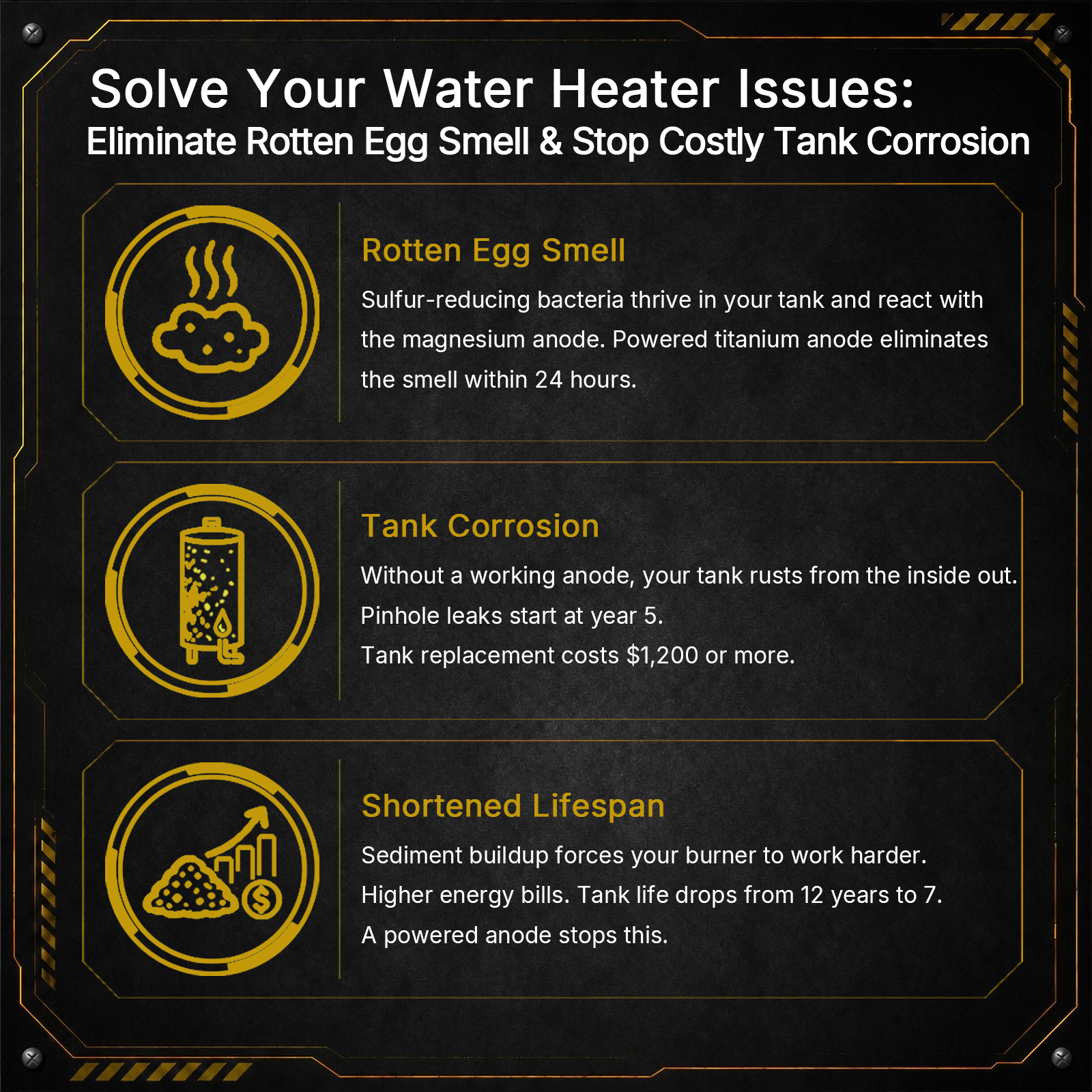

Learn more →Problems we solve
Rotten Egg Smell
Sulfur-reducing bacteria thrive in a depleted tank. Powered titanium stops the corrosion that feeds them — most homeowners notice fresher water within 24 hours.
Learn more →Tank Corrosion
Without a working anode, steel rusts from the inside out. Pinhole leaks and rusty water follow — a $1,200+ tank replacement nobody plans for.
Learn more →Shortened Lifespan
Sediment buildup and constant rust shorten tank life from 12 years to 7. A permanent anode keeps efficiency up and delays that expensive swap.
Learn more →How It Works
The powered titanium anode creates a small protective current that stops corrosion — without ever depleting.
Powered Current
The TGR2-X1 draws a tiny 0.015 A current from a standard 110V outlet, outputting 12V DC to the titanium rod.
Protects the Tank
The current travels through the water to the steel tank wall, making the tank the cathode. The titanium anode becomes the source of protective ions instead of corroding.
Permanent Defense
Unlike magnesium or aluminum anodes that deplete every 3-5 years, the titanium rod never depletes. It protects your tank for its full life.

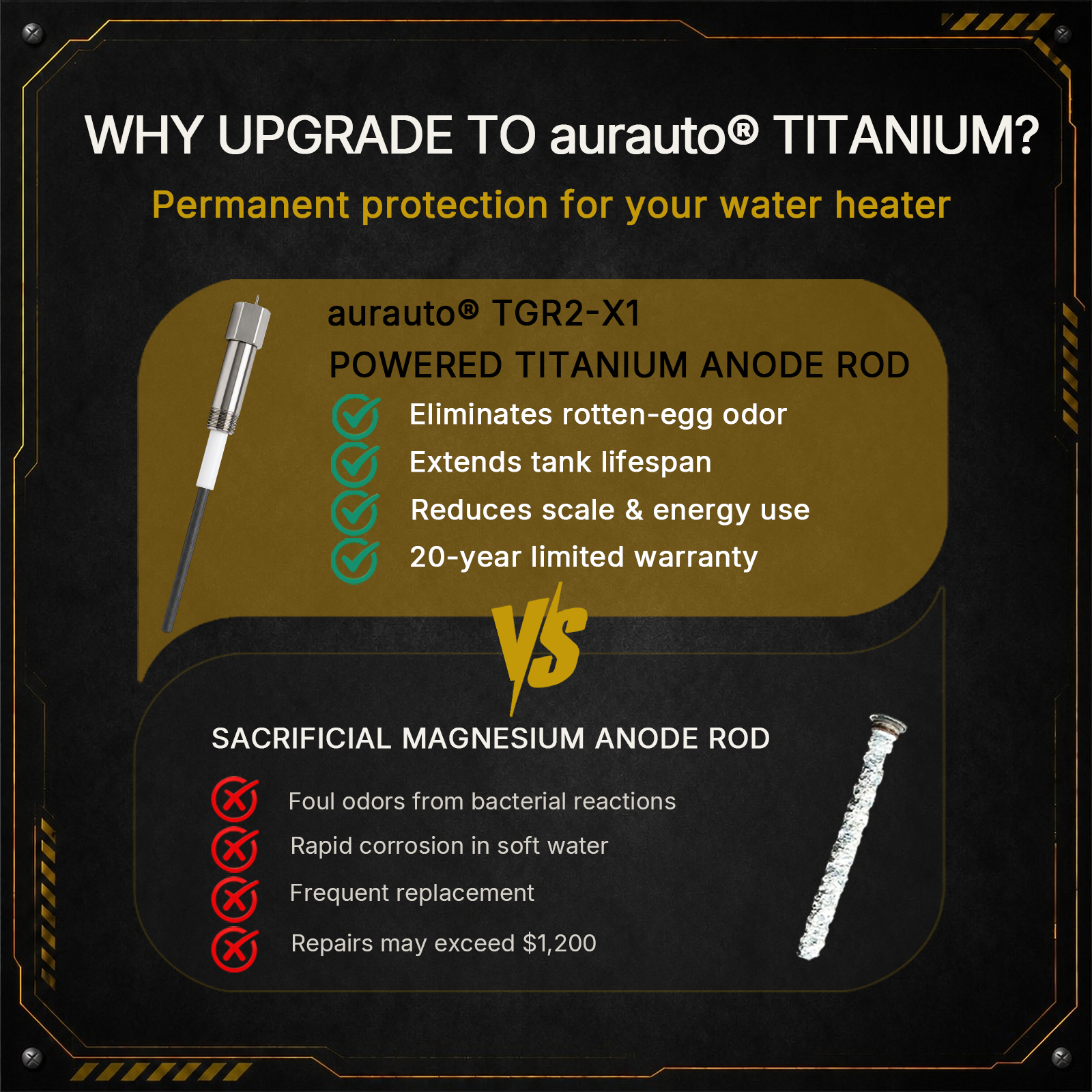

How aurauto® Compares
Same certification standard. Industrial ICCP engineering. Lower price. Unit-level accountability.
| Feature | aurauto® | Market Brands | Substandard Alternatives |
|---|---|---|---|
| Price (40-89 Gal) | $99 | $150+ | $40-80 |
| WQA Gold Seal Certified | ✓ | ✓ | ✗ |
| ETL Listed (UL Safety Standard) | ✓ | ✓ | ✗ |
| ISO 9001 Certified Manufacturing | ✓ | Not Published | ✗ |
| Industrial ICCP Engineering Heritage | ✓ | ✗ | ✗ |
| Ir-Ta MMO Titanium Anode | ✓ | Not Published | ✗ |
| Internal Production, Quality & Service Record Linkage | ✓ | Not Published | Not Published |
| Package QR Install Video | ✓ | ✗ | ✗ |
| Dedicated Customer Support Channel | ✓ | ✓ | ✗ |
Competitor figures are general market observations at the time of publication and are not attributed to any specific brand. aurauto® is not affiliated with any other brand.
Technical Specifications
Every detail an installer needs to confirm compatibility before clicking buy.
| SKU | TGR2-X1 |
|---|---|
| GTIN / UPC | 0860016066403 |
| Product Name | aurauto® TGR2-X1 Powered Titanium Anode Rod |
| Tank Capacity | 40-89 US Gallons (Standard Residential) |
| Package Size | 360 × 130 × 60 mm |
| Thread | 3/4" NPT |
| Material | Titanium substrate, Ir-Ta mixed metal oxide (MMO) coating |
| Anode Coating | Ir-Ta MMO (iridium-tantalum oxide on titanium) |
| Weight | 1.1 kg (2.4 lb) |
| Power Input | 110V AC (standard US outlet) |
|---|---|
| Power Output | 12V DC, 0.015 A |
| Annual Operating Cost | $2-3 USD (typical US electricity rates) |

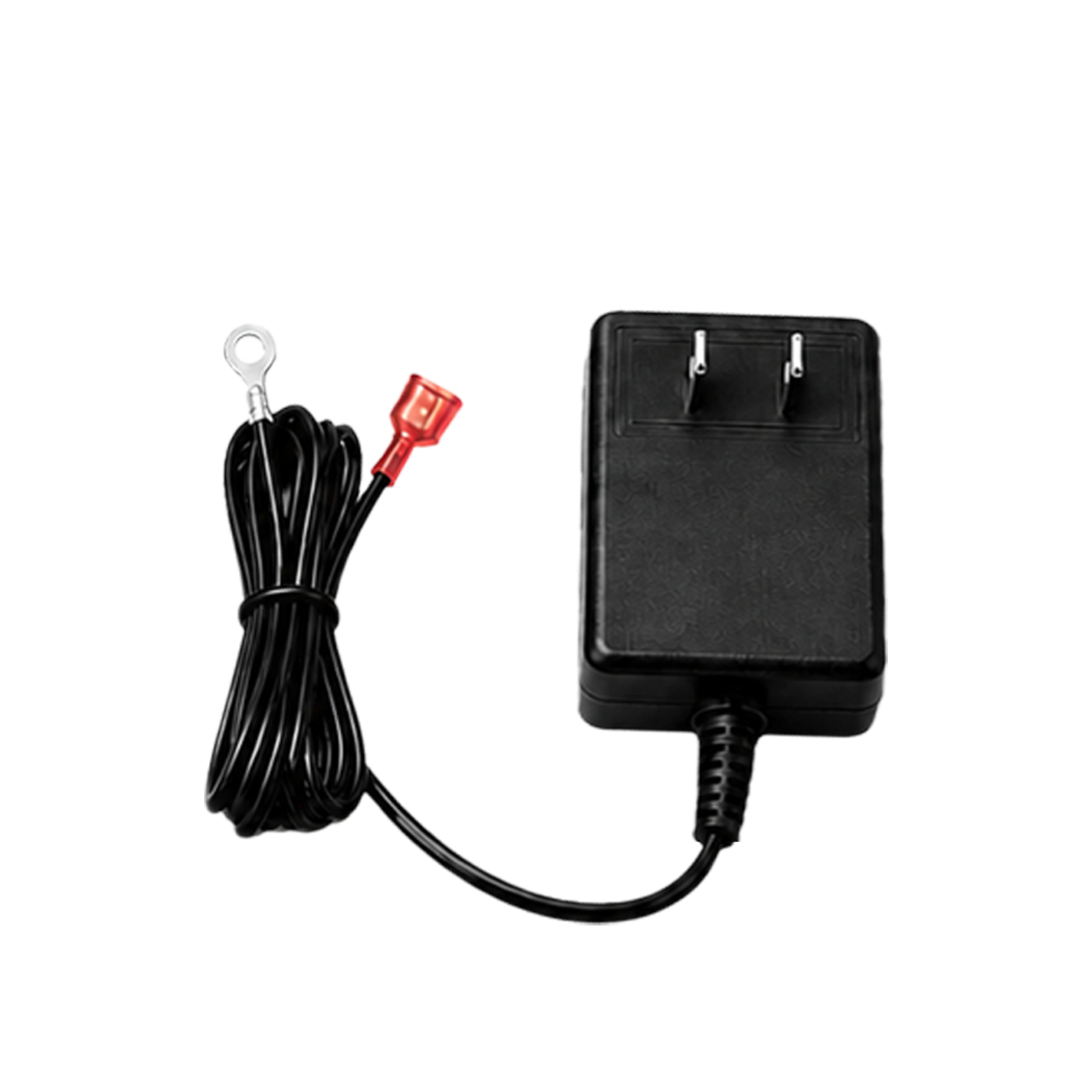

| Power Supply | UL-listed, 12-foot cord |
| Status Indicator | Solid green LED on adapter |
WQA Gold Seal Certified
Tested and certified by the Water Quality Association against NSF/ANSI/CAN 372.
ETL Listed
Power adapter certified by Intertek to UL 1310 / CSA C22.2#223.
ISO 9001 Certified
Manufacturer's Quality Management System, issued by ZSC, CNAS C284-M.
WQA NSF/ANSI/CAN 372 certified model: TGR2-X1. Kit-specific fittings are installation accessories.

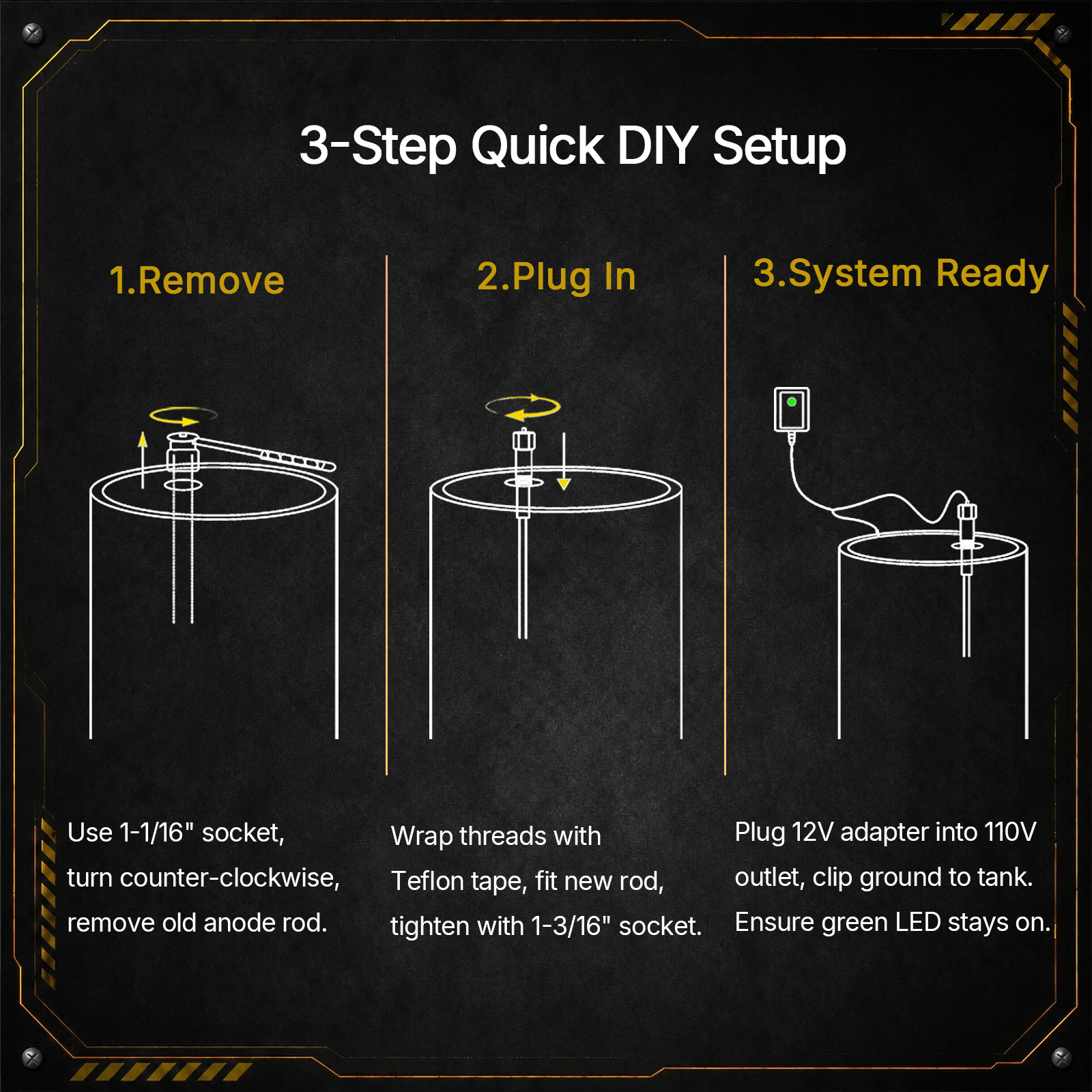

Easy 3-Step Installation
Simple enough to do yourself. Powerful enough to last forever.
1. Remove
Fit the included 1-1/16" socket. Turn counter-clockwise. Pull out the old sacrificial anode rod.
2. Install

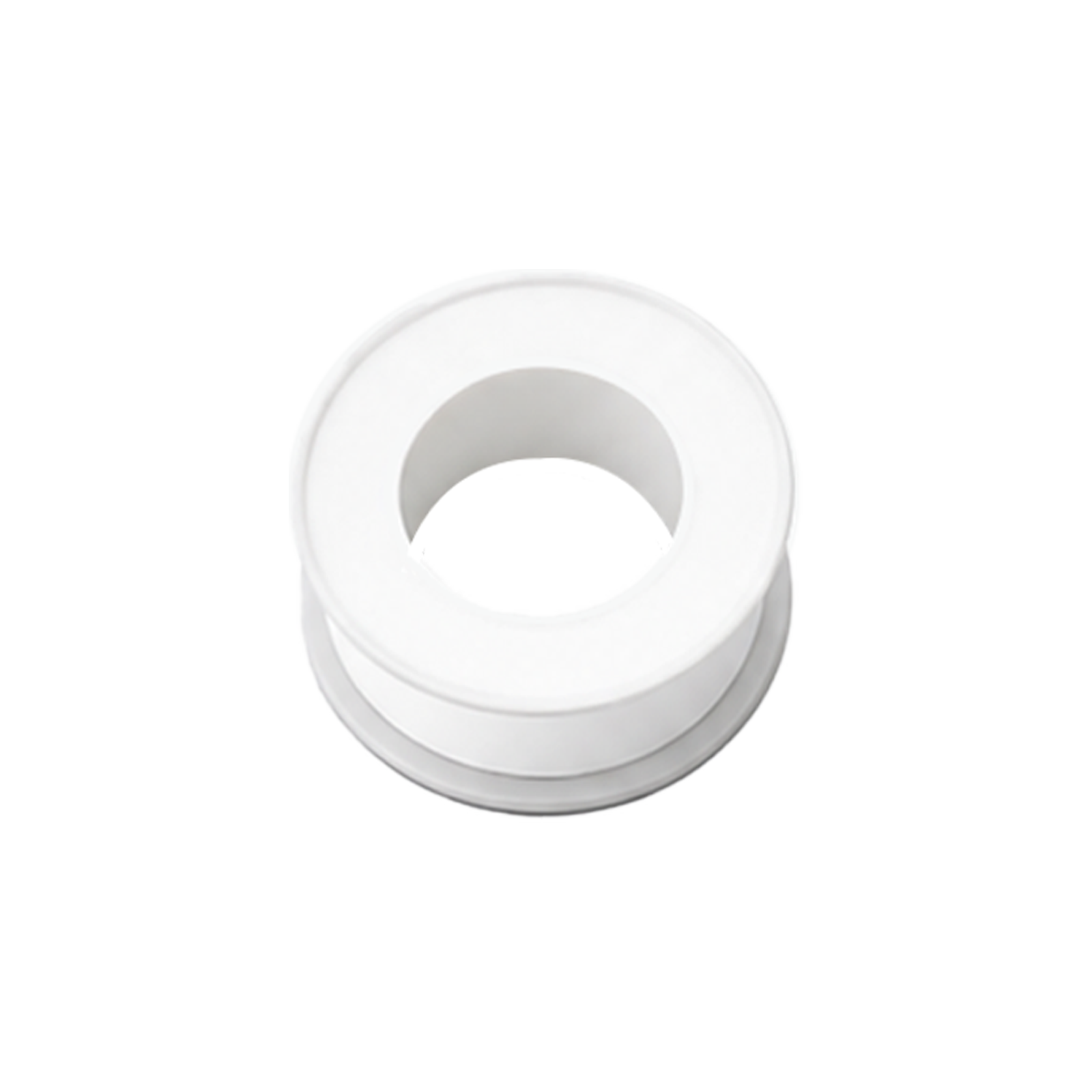

Wrap threads with Teflon tape. Drop in the aurauto® rod. Snug with the included 1-3/16" socket — do not over-tighten.
3. Connect
Plug the power adapter into any 110V outlet. Snap the ground clip to the tank. Confirm the green LED is solid.
1. Remove outlet
Shut off water and depressurize. Unscrew the hot water outlet nipple to access the factory anode rod inside.

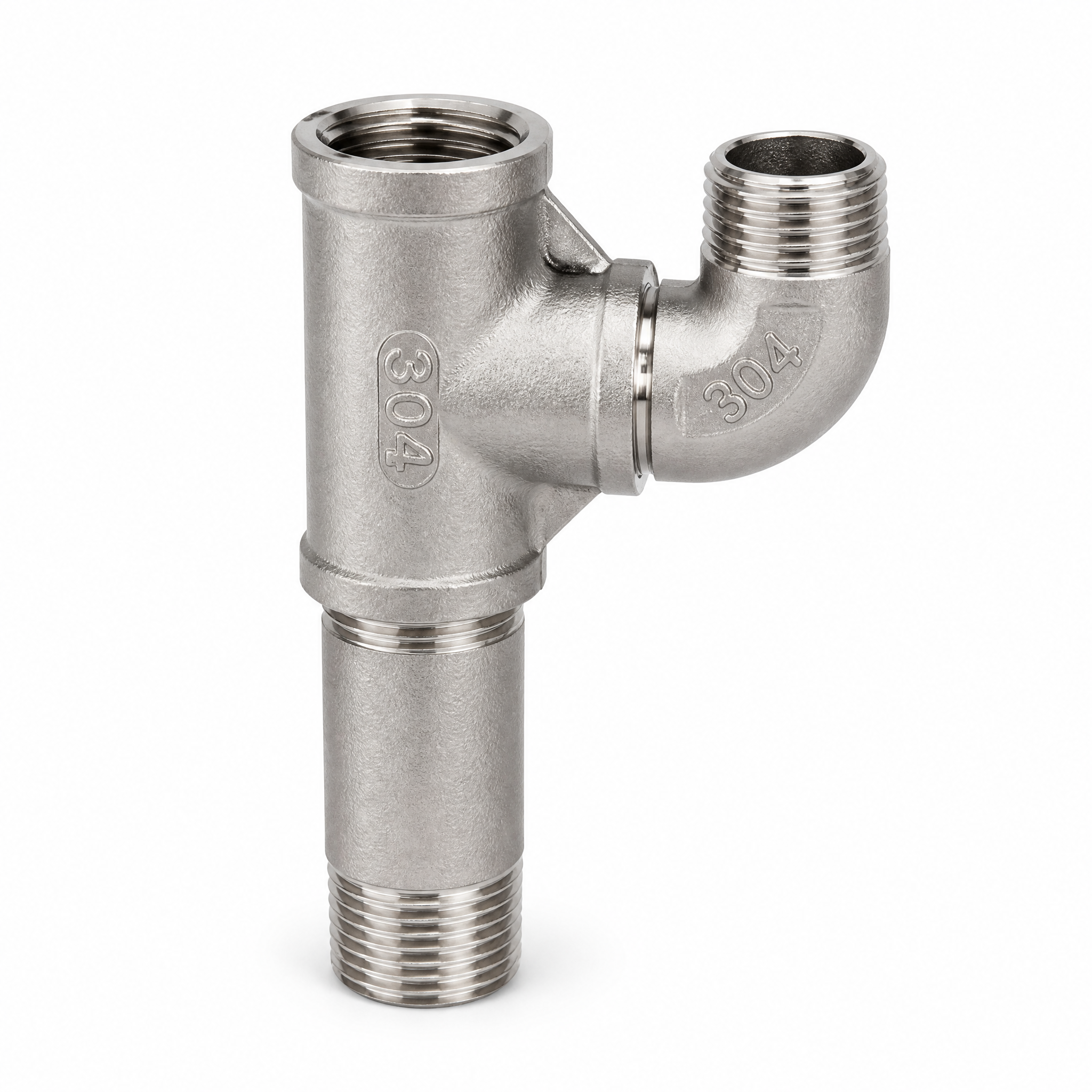

2. Install with tee kit
Follow the Bradford White branch in the guide. Use the three pre-assembled tee fittings supplied in the kit.
3. Connect
Plug the power adapter into any 110V outlet. Snap the ground clip to the tank. Confirm the green LED is solid.

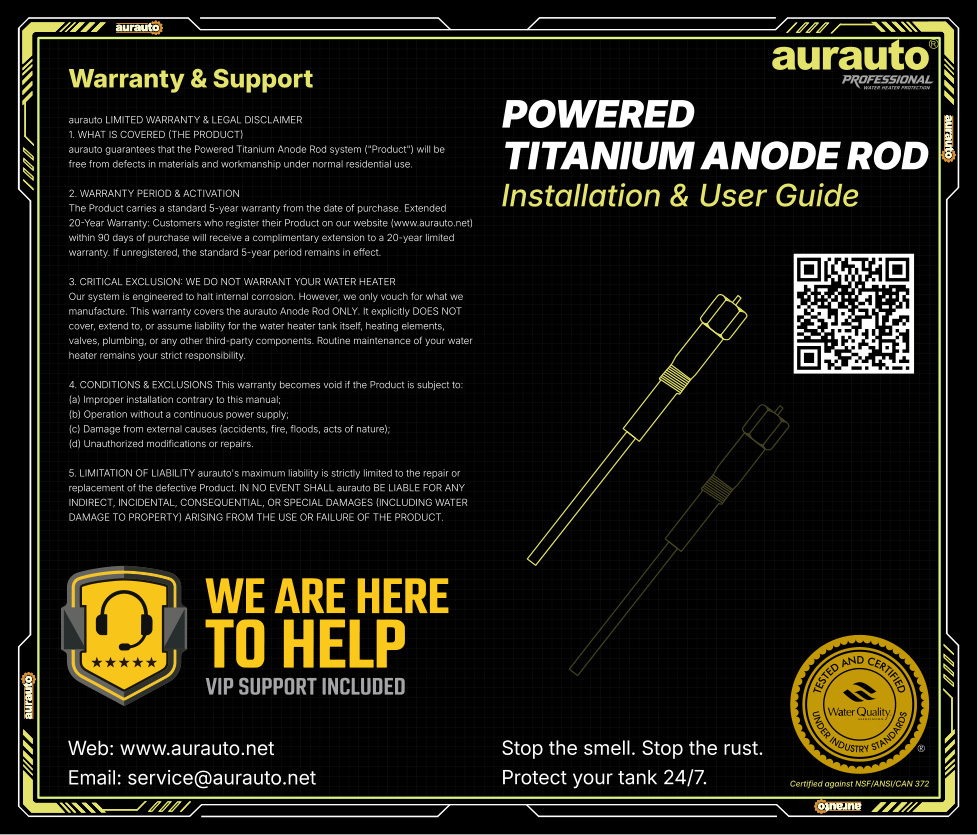

Watch install video Official walkthrough — same page as the package QR.
Frequently Asked Questions
Top questions before you buy.
Verified buyer reviews coming soon — no fabricated testimonials. See certifications and our install guide in the meantime.
What coating is on the TGR2-X1 anode?
The anode rod uses an iridium-tantalum (Ir-Ta) mixed metal oxide coating on a titanium substrate — the catalytic family industrial engineers specify for freshwater impressed-current cathodic protection (oxygen evolution). It is driven at 12 V DC and 0.015 A, not consumed like a sacrificial magnesium rod. See Ir-Ta MMO explained for the full engineering overview.
Does the TGR2-X1 fit my Bradford White water heater?
Yes — choose the Bradford White Installation Kit on this page. Most Bradford White tanks mount the anode in the hot water outlet; that kit includes three pre-assembled tee fittings for that path. The Standard Kit is for dedicated anode ports only. See our Bradford White compatibility guide to confirm your tank layout.
Do I need a plumber to install this?
No plumber is required for most residential water heaters. The TGR2-X1 installs in about 5 minutes using the included sockets (1-1/16" for the old rod, 1-3/16" for the aurauto® rod). A QR code on every package links to a step-by-step video tutorial. The unit plugs into a standard 110V outlet and uses less than $3 of electricity per year.
What is the return and warranty policy?
30-day no-questions-asked returns on unopened packages. 20-year limited warranty against manufacturing defects. Free shipping on all US orders. Warranty registration takes 60 seconds at aurauto.net/resources/warranty-returns/.
Is the TGR2-X1 NSF certified?
Yes. The TGR2-X1 is tested and certified against NSF/ANSI/CAN 372 by the Water Quality Association. This standard confirms the product is lead-free and safe for potable water systems. The certification mark is engraved on every nameplate and printed on the packaging.
Box contents, power use, smell removal — View full FAQ → · See also What's in the Box
